MPEG2 IP Encoder

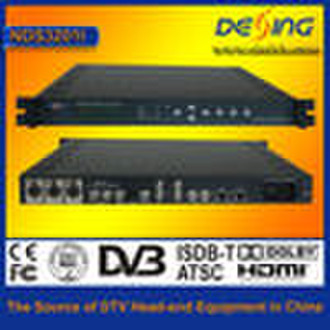

MPEG2 IP Encoder Outline NDS3201I Single Channel MPEG2 Encoder with SDI Input and IP output is a user-friendly, powerful MPEG-2 Encoder. It supports all standard video and audio signals, including CVBS, S-Video, SDIdigital video and balance analogue stereo, and imbalance analogue stereo, AES/EBU digital audio, SDI embedded audio etc. The format of the output of compressed data is ASI/SPI. It also can transport TS stream by E1 port and Ethernet port. It completely complies with MPEG-2 standard, and it has high compatibility. Its dimension is 1U standard case. By watching the LCD display on the front panel, user can finish the setting of auto-running of this machine. Features Support MPEG-2 MP@ML (4:2: 0) encoding Hi-Fi audio processing R/L channel, stereo input. SDT insert, program provider and program name setting possible. Output code rate continuously variable, flexible in use. LCD display, flexible in operation. Local/Remote net administration possible. High reliability design, stable in running. Plentiful input and output ports, realize free connection. Repeat Interval RAT 25 500ms RMT 25 500ms PRC PCR Jitter < 500ns PCR interval 0 40ms Eye chart Rate 800±80mV Up Time ≤1200ps Down Time ≤1200ps Video input interface Composite Video Level 1.0Vp-p SDI Digital Video ≤0.5dB, S-Video Level 1.0Vp-p Audio input interface RCALevel 1.0Vp-pSDI Embedded digital audioBalanced Audio XLR110ΩBalanced line,Cannon Jack SocketAES/EBU digital video110Ω Balanced line,Cannon Jack SocketOutput port 4×E1 OutputsCan directly connect with SDH/PDH networkASIDVB StandardIPNetwork port RJ 4510/100bit/sOutput code rate Output code rate1.0 15Mbps continuously adjustable Video Specification Video ouptut rate700±20Video Sync Rate300±9Color sync rate300±9Video Frequency Response±0.5dB(≤4.8MHz)≤0.5dB, ≥-1.0dB(5.0MHz)≤0.5dB, ≥-4.0dB (5.5MHz)K Factor≤3%Lightness Nonliear5%Gain of Differential Coefficient±3%Gain Differential of Color or Light±3%Delay Difference of Color or Light±20nsSignal to Noise Ratio≥56dB ( weighted)
